Product Overview

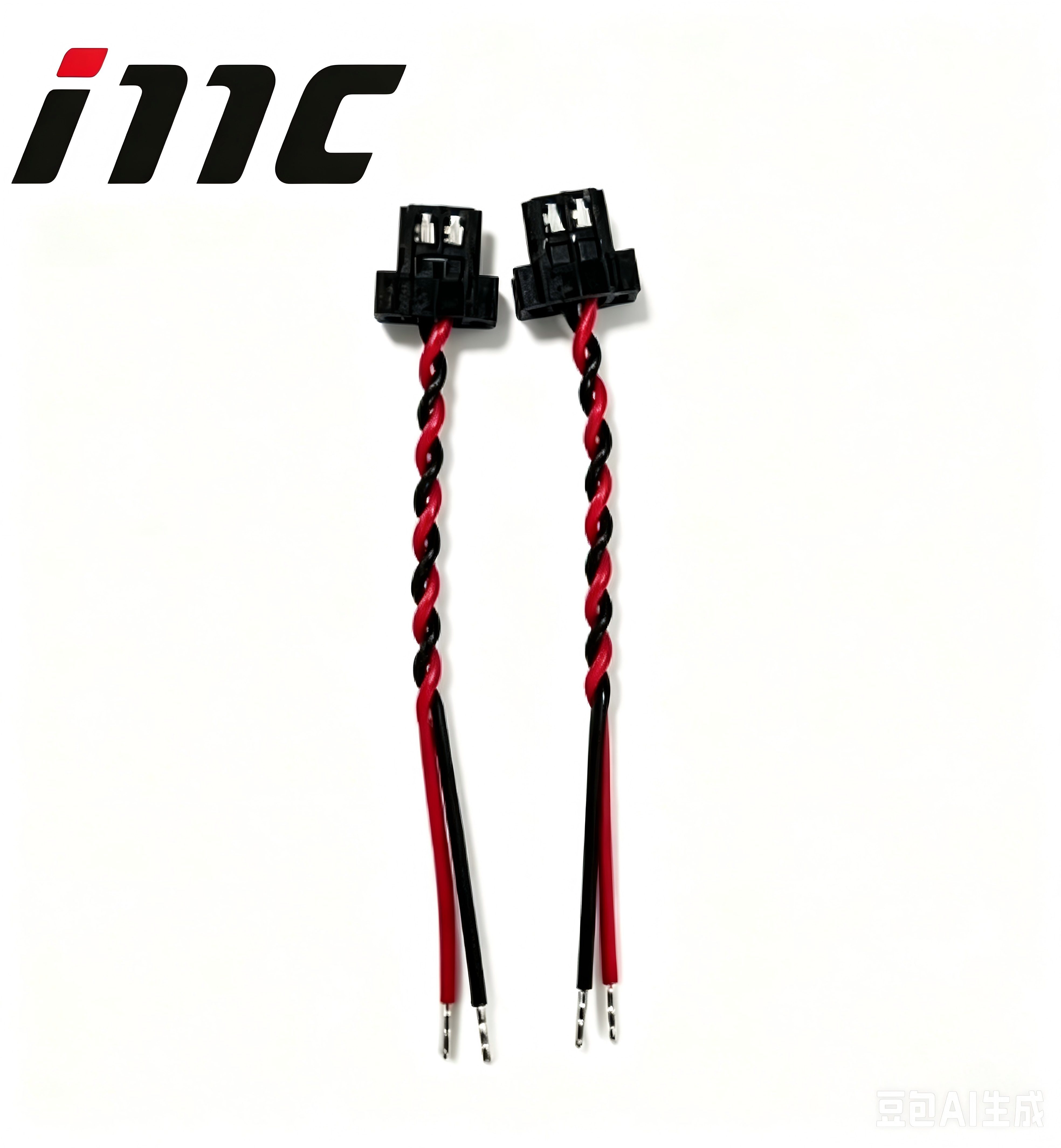

0.8 mm Pitch 2‑Pin Micro Wire‑to‑Board (WTB) Connector

Core Electrical Parameters

1.Pin Configuration: 2Pin, Pitch 0.8 mm

2. Compatible Wire: 32AWG ultra‑fine electronic wire, red‑black twisted‑pair cable

3. Rated Voltage: DC 5~12V

4.Rated Current: Max. 1.5A per pin

5.Contact Resistance: ≤40mΩ, gold‑plated contacts for anti‑oxidation

6.Insulation Resistance: ≥100MΩ

Typical Application Scenarios

Small‑size Motors ‑ Transmission: Stable transmission for low‑power weak sensor signals
